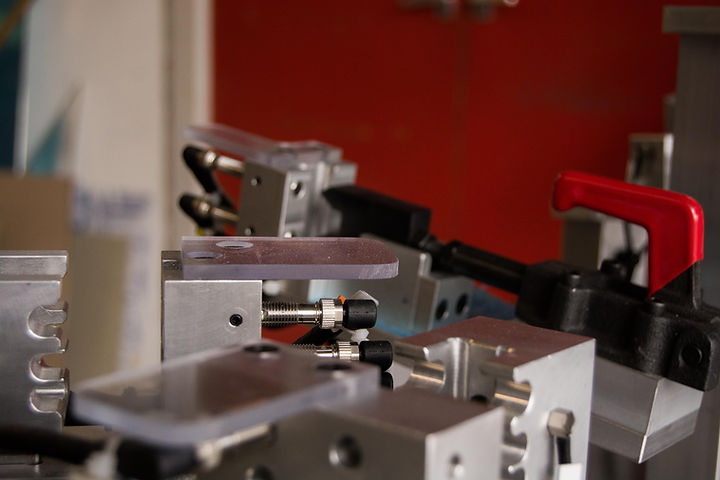

Assembly Fixtures

Assembly 9.jpg


Our systems allow complex assemblies to be assembled error free. Sensors, electronic screw drivers, and vision sensors feed back to the controls. Visual guidance from HMI programs take the operator through the process.

Complex Tube Assembly

We specialise in designing and creating complex tube assemblies. Our fixtures are usually proface HMI controlled. We manufacture fixtures for small individual tubes up to large complex under floor assemblies.

Assembly 2.jpg
Tube bending fixture.jpg

Related Services

Other projects we have done include tube insertion fixtures for plastic pipes & canisters and integration of specialist crimping equipment for hoses.
